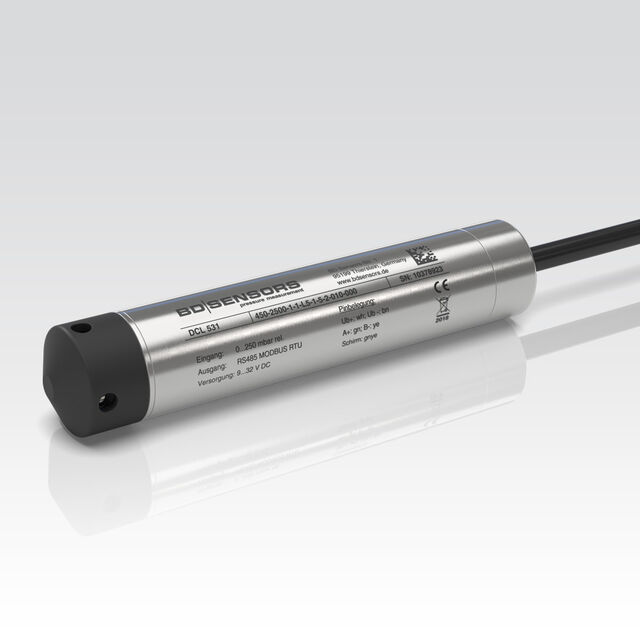

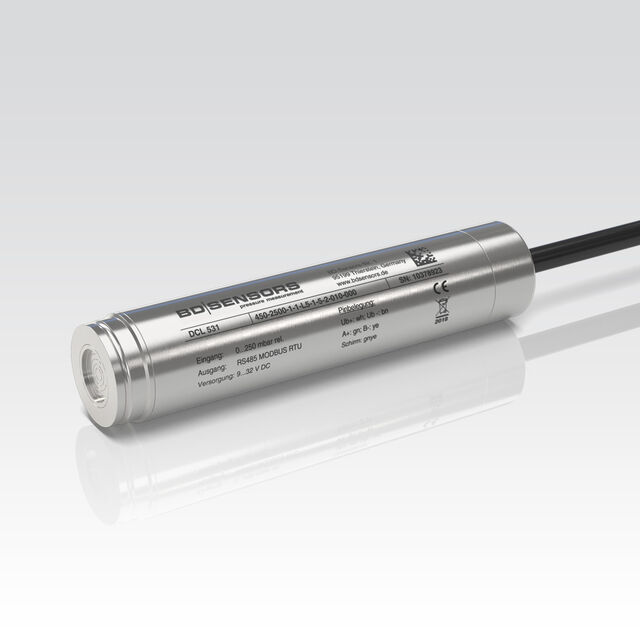

DCL 531
stainless steel sensor
with RS485 Modbus RTU
The stainless steel probe DCL 531 with RS485 interface uses the communication protocol Modbus RTU which has found the way in industrial communication as an open protocol. The Modbus protocol is based on a master Slave architecture with which up to 247 Slaves can be questioned by a master – the data are transferred in binary form.
Basic element is a high quality stainless steel sensor with high requirements for exact measurement with excellent long term stability.
Features
- nominal pressure: 0 ... 1 mH2O up to 0 ... 250 mH2O
- accuracy: 0,25 % FSO
- output signal: RS485 with Modbus RTU protocol
- diameter diameter 26.5 mm
- small thermal effect small thermal effect
- high accuracy excellent accuracy
- excellent long term stability
- reset function
Optional Features
- drinking water certificate according to DVGW and KTW
- different kinds of cables
- different kinds of seal materials
Areas of application
marine and shipbuilding
Media
fuels and oils
water
