DMP i
stainless steel sensor
laboratory, environmental industry

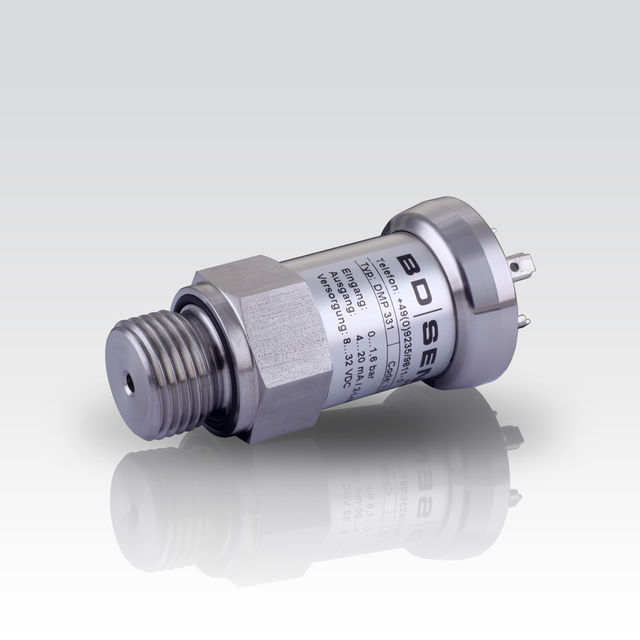

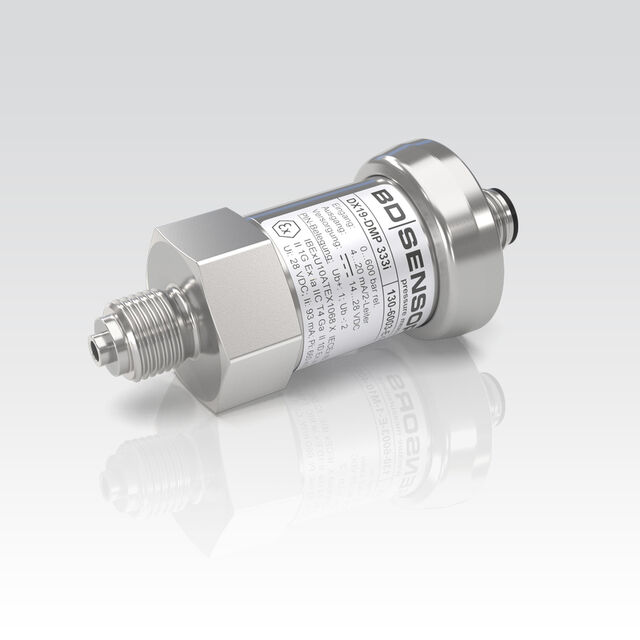

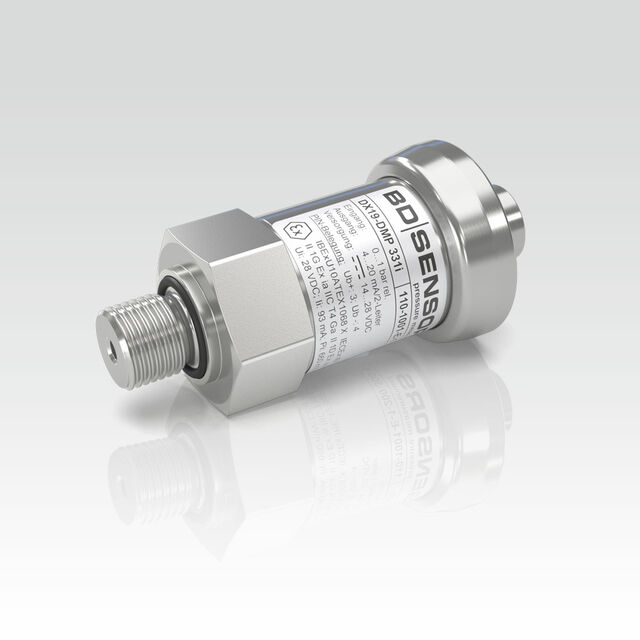

The precision pressure transmitter DMP 331i and DMP 333i demonstrate the further development of our industrial pressure transmitters.
The signal processing of sensor signal is done by digital electronics with 16-bit analog digital converter. Consequently it is possible to conduct an active compensation and the transmitters with excellent maesurements and exeptionally attractive price to offer on the market.
Features
- nominal pressure: 0 ... 400 mbar up to 0 ... 600 bar
- accuracy: 0.1 % FSO
- thermal error in compensated range -20 … 80 °C: 0.2 % FSO TC 0.02 % FSO / 10 K
- excellent long-term stability
Optional Features
- IS-version
Ex ia = intrinsically safe for gases and dusts - welded pressure sensor
- pressure port G 1/2" flush
- customer specific versions
Areas of application
- mechanical and plant engineering
- energy industry
- renewable energy
- laboratory
