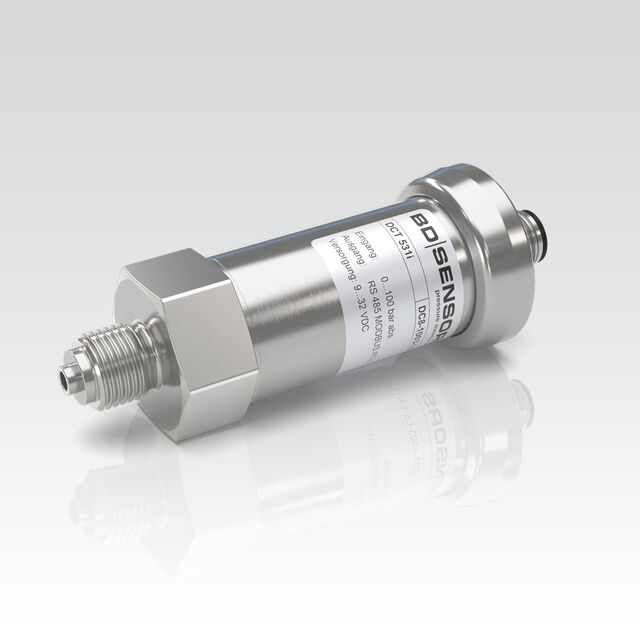

DCT 531i
pressure sensor: stainless steel
mit RS485 Modbus RTU
Digital pressure logging: the DCT 531i is characterized by very good accuracy and excellent temperature behaviour and is therefore ideally suited for applications where precise pressure measurement is necessary (e.g. test benches, leakage tests, etc.). Thanks to the integrated RS485 interface (based on the MODBUS RTU protocol), reliable and robust data transmission is available, which also works without problems over longer distances. Since the DCT 531i works directly with a master e.g. is coupled to a SPS, conversion losses of an analogue input card are avoided. Different mechanical and electrical connections are available so that the DCT 531i can be used in various applications without any problems.
Features
- nominal pressure: 0 ... 100 mbar up to 0 ... 400 bar
- accuracy: 0.1 % FSO
- output signal: RS485 mit Modbus RTU Protokoll
- perfect thermal behaviour
- excellent long term stability
- reset function
Optional Features
- pressure port G 1/2" flush up to max. 40 bar
- customer specific versions
- pressure sensor welded
Areas of application
mechanical and plant engineering
energy industry
Media
gases
fuels and oils
water
