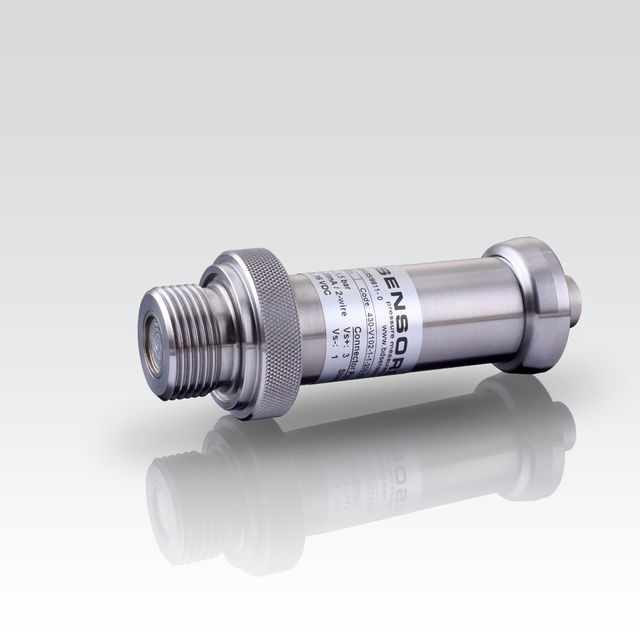

![Screw-in transmitter LMP331i](/fileadmin/_processed_/2/5/csm_LMP-331i_R_d2d17c0bc6.jpg)
LMP 331i
stainless steel sensor
laboratory, environmental industry
The precision screw-in transmitter LMP 331i demonstrate the further development of our industrial pressure transmitters.
The signal processing of sensor signal is done by digital electronics with 16-bit analog digital converter. Consequently it is possible to conduct an active compensation and the transmitters with excellent maesurements and exeptionally attractive price to offer on the market.
Features
- nominal pressure: 0 ... 400 mbar up to 0 ... 40 bar
- accuracy: 0.1 % FSO
- thermal error in compensated range -20 … 80 °C: 0.2 % FSO TC 0.02 % FSO / 10 K
- turn-down 1:10
- communication interface for adjusting of offset, span and damping
Optional Features
- IS-version
Ex ia = intrinsically safe for gases and dusts - adjustment of nominal pressure gauges (factory-provided)
Areas of application
chemical industry
environmental industry
Media
fuels and oils
water
gases
