LMP 308i
stainless steel sensor

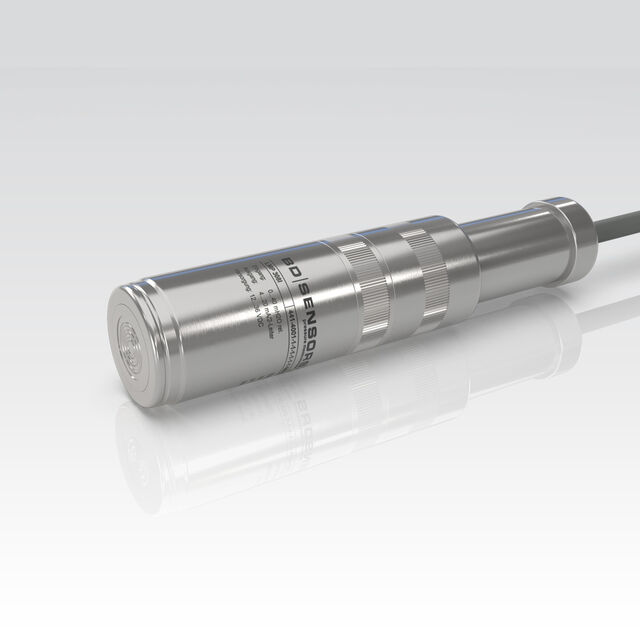

detachable stainless steel probe Ø 35
The detachable precision stainless steel probe LMP 308i is designed for continuous fill level and level measurement of water and liquid mediums. The signal processing of sensor signal is done by digital electronics with 16-bit analog digital converter. Consequently it is possible to conduct an active compensation of sensor intrinsic deviations from normal condions like nonlinearity and thermal error.

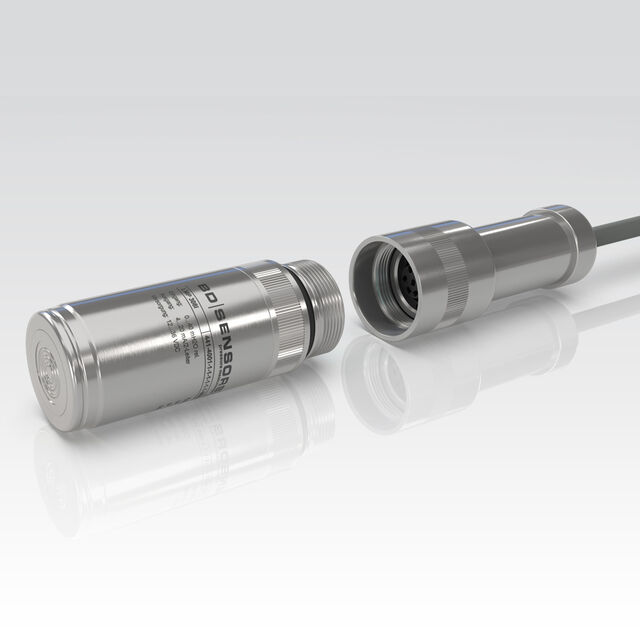

In order to facilitate stock-keeping and maintenance the transmitter body is plugged to the cable assembly with a connector and can be changed easily.
Features
- nominal pressure: 0 ...4 mH2O up to 0...200 mH2O
- accuracy: 0.1 % FSO
- diameter 35 mm
- cable and sensor section detachable
- thermal error in compensated range -20...70°C: 0.2 FSO TC 0.02% FSO/10K 0,02 % FSO / 10K
- high accuracy
- communication connection
- turn-down 1:10
Optional Features
- IS-version
Ex ia = intrinsically safe for gas and dust - mounting accessories as cable gland and terminal clamp in stainless steel
- different kinds of cables
- different kinds of seal materials
Areas of application
energy industry
environmental industry
Media
water
