DMK 458
ceramic sensor
marine, shipbbuilding, offshore

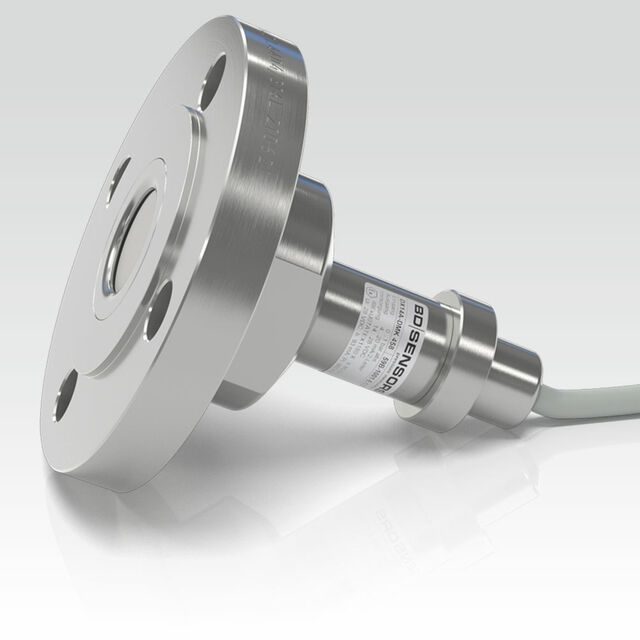

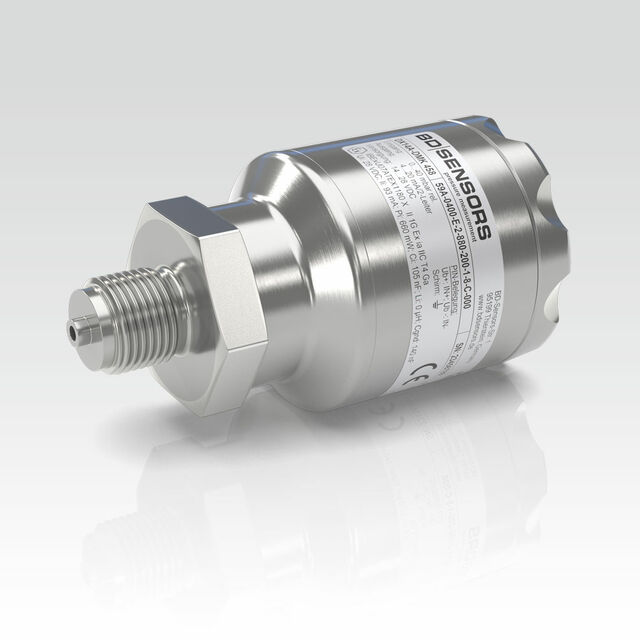

The pressure transmitter DMK 458 has been developed for marine and offshore applications. In addition to thread connections, different flush versions are available, which are especially suitable for pasty, viscous, and polluted media.
Due to the capacitive ceramic sensor developed by BD|SENSORS, which is optionally available in Al2O3 99.9 %, the DMK 458 shows an outstanding accuracy as well as a high overload and temperature resistance.
Features
- nominal pressure: 0 ... 40 mbar up to 0 ... 20 bar
- accuracy: 0.25 % (opt. 0.1 %) FSO
- shipping approvals: American Bureau of Shipping (ABS), Bureau Veritas (BV), China Classification Society (CCS), Det Norske Veritas (DNV), Germanischer Lloyd (GL), Lloyd's Register (LR)
- high overpressure resistance
- excellent long term stability
Optional Features
- IS-version
Ex ia = intrinsically safe for gases and dusts - diaphragm AI2O3 99.9 %
- pressure port CuNiFe
Areas of application
mechanical and plant engineering
marine and shipbuilding
Media
fuels and oils
water
viscous and pasty media
